Key Inspection Techniques for Automotive Die Integrity
TL;DR
Effective inspection of automotive dies requires a comprehensive strategy combining multiple techniques. The process ranges from fundamental hands-on methods like visual and touch tests to advanced, high-precision metrology using Coordinate Measuring Machines (CMM) and 3D scanning for absolute dimensional accuracy. Additionally, Non-Destructive Testing (NDT) is vital for assessing the internal material integrity of a die without causing damage, ensuring both quality and longevity.
Foundational Inspection Methods: Manual and Visual Techniques
The first line of defense in automotive die quality control lies in foundational manual and visual inspection techniques. These methods are cost-effective, rapid, and serve as an essential preliminary check before employing more complex technologies. Visual inspection is the most direct method, used to identify macroscopic defects and any obvious abnormalities in the stamping parts or the die itself. It relies on the trained eye of an inspector to spot issues that could compromise the final product's quality.
Building on basic visual checks, several tactile and enhanced visual methods provide deeper insight. The 'Touch test' involves an experienced inspector wearing contact gloves and feeling the die's surface to detect subtle imperfections that may not be immediately visible. For finding tiny punctures or ripples, 'Oil coating inspection' is highly effective; a thin, even layer of oil is applied to the die's surface and examined under strong light, which highlights minute flaws. Another technique is polishing the surface with flexible gauze or a whetstone, which can reveal hard-to-see pits, indentations, and other surface irregularities by observing how the material responds to the abrasive action.
A standard visual inspection routine is a critical component of die maintenance. Before any production run, a thorough check should be performed in a well-lit environment, often with magnification tools, to ensure the die is free from contaminants and damage. Key checkpoints include examining the entire surface for cracks, chips, or discoloration, and paying close attention to working surfaces and edges for signs of wear or rounding, often called mushrooming. This proactive approach helps catch potential issues early, preventing costly downtime and ensuring consistent part quality.
| Technique | Primary Purpose | Key Defects Detected | Limitations |
|---|---|---|---|
| Visual Inspection | Identify obvious, macroscopic defects | Cracks, discoloration, corrosion, build-up | Cannot detect internal or microscopic flaws; dependent on inspector skill |
| Touch Test | Detect subtle surface imperfections | Minor indentations, uneven surfaces | Highly dependent on inspector's experience and sensitivity |
| Oil Coating Inspection | Highlight very small surface flaws | Tiny punctures, ripples, shallow indentations | Requires a clean surface and proper lighting for effectiveness |
| Whetstone/Gauze Polishing | Reveal pits and indentations | Pits, indentations, surface roughness | Can be abrasive; must be used carefully to avoid altering the die surface |
High-Precision Metrology: CMM and 3D Scanning
For industries like automotive manufacturing where precision is non-negotiable, foundational checks are followed by advanced metrology. High-precision tooling requires verification using sophisticated equipment to ensure every part meets exact specifications. Coordinate Measuring Machines (CMMs) have long been a staple for this purpose. A CMM uses a probe to collect precise data points on a die's surface, which are then compared against the original CAD model to verify geometric tolerances and dimensional accuracy. This method is exceptionally accurate for validating critical dimensions.

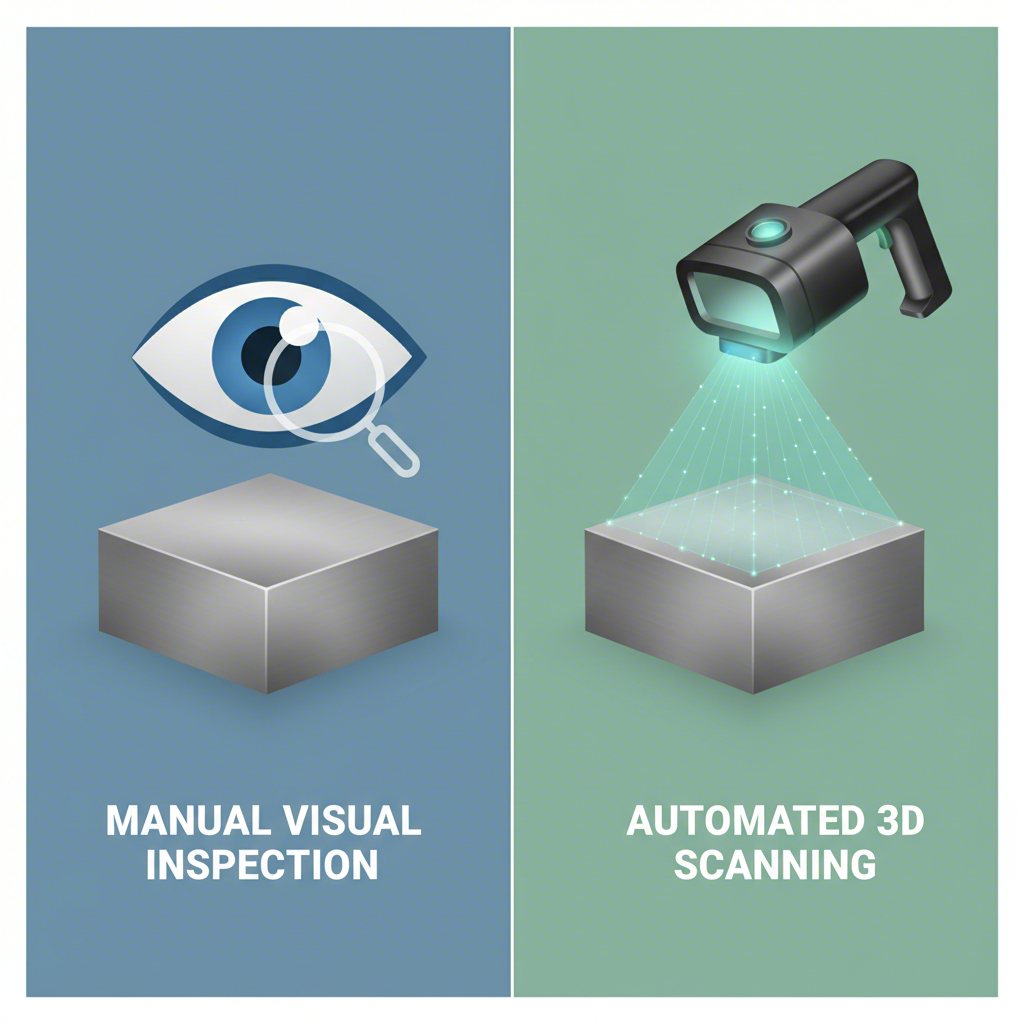

In recent years, 3D scanning has emerged as a powerful alternative and complement to CMMs. Unlike the point-based data collection of a CMM, a 3D scanner captures millions of data points to create a complete, high-density digital model of the die's entire surface. This comprehensive surface data allows for the creation of detailed 3D inspection reports, often visualized as color maps (chromatograms) that clearly show any deviation from the design specifications. This makes it easier to identify subtle warping, surface defects, or wear that might be missed by point-based measurements.
The workflow for a high-precision inspection typically involves several key steps. First, the data is collected, either through CMM probing or 3D scanning. This raw data is then processed and aligned with the original CAD design. Finally, a detailed analysis is performed to identify any areas that fall outside the specified tolerances. Companies that specialize in manufacturing high-quality tooling, such as Shaoyi (Ningbo) Metal Technology Co., Ltd., rely on these advanced metrology techniques and CAE simulations to ensure their custom automotive stamping dies meet the stringent IATF 16949 standards required by OEMs and Tier 1 suppliers.
| Feature | Coordinate Measuring Machine (CMM) | 3D Scanning |
|---|---|---|
| Data Collection Method | Physical probe touches specific points | Non-contact optical or laser scanning captures millions of points |
| Data Richness | Provides highly accurate data for specific, pre-defined points | Creates a complete, high-density 3D model of the entire surface |
| Speed | Slower, as it measures point by point | Faster, captures large surface areas quickly |
| Best For | Verifying critical dimensions, geometric tolerances, and prismatic shapes | Inspecting complex surfaces, identifying warping, and creating color maps of deviations |
Material Integrity Analysis: Destructive vs. Non-Destructive Testing (NDT)
Beyond dimensional accuracy, the structural integrity of an automotive die's material is paramount. Two primary philosophies exist for evaluating this: destructive and non-destructive testing. Destructive testing, as the name implies, involves physically destroying a sample part to measure its properties, such as material strength. This can involve breaking, sawing, or crushing the casting in areas where defects like voids are suspected. While it provides definitive data on a sample's limits, its main drawback is that it renders the tested part unusable, meaning it can only be performed on a small batch sample, not every component.

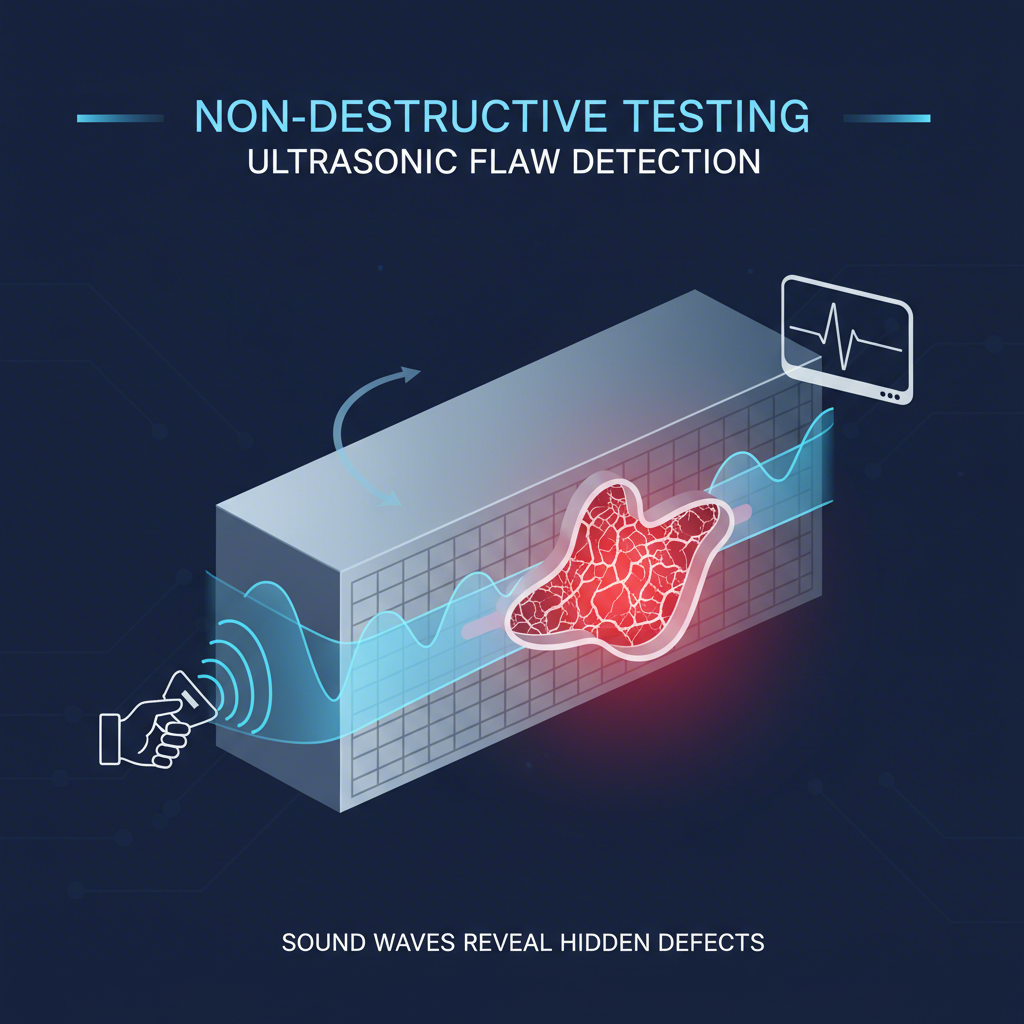

To overcome this limitation, Non-Destructive Testing (NDT) is widely favored for quality assurance in die manufacturing. NDT methods allow inspectors to examine a die for internal or surface-level flaws without causing any damage, enabling 100% inspection of critical components. These techniques are essential for identifying hidden defects that could lead to catastrophic failure during production. They provide a window into the material's internal structure, ensuring it is free from inconsistencies that could compromise its performance under immense pressure.
Several NDT methods are particularly relevant for automotive dies. Magnetic Particle Testing is used on ferromagnetic materials like iron and steel to detect surface and near-surface cracks. The part is magnetized, and fine iron particles are applied; any cracks will disrupt the magnetic field, causing the particles to accumulate and reveal the flaw. For non-magnetic materials, Penetrant Testing is used. A colored or fluorescent liquid dye is applied to the surface, which seeps into any cracks. After the excess is wiped away, a developer is applied that draws the penetrant out, making the crack visible. To find internal flaws, Ultrasonic Testing uses high-frequency sound waves that travel through the material and reflect off any defects or the back wall, allowing technicians to locate and size internal voids or inclusions.
Assessing Die Condition and Maintenance: Ensuring Longevity and Performance
The inspection process doesn't end once a die is put into service. A systematic assessment of used dies is crucial for maintaining performance, ensuring product quality, and extending the tool's lifespan. Condition assessment is a proactive process of evaluating used dies to identify wear and damage before they lead to production failures. This involves a combination of the visual and dimensional checks performed on new dies but with a specific focus on the effects of operational stress over time.
When inspecting a used die, several key checkpoints are critical. A thorough surface examination, often under magnification, is needed to identify common defects that arise from repeated use. These include:
- Chipping and Cracking: Often caused by excessive force or misalignment.
- Galling: Surface damage caused by friction and material transfer between the punch and die.
- Wear and Mushrooming: The rounding or deformation of working edges and tips due to high stress.
- Pitting and Corrosion: Surface degradation that can affect part finish and die integrity.
A comprehensive maintenance program is essential for mitigating these issues. A clear set of best practices can prevent premature failure and reduce costly downtime. Proper maintenance ensures the die continues to operate within its specified tolerances, producing consistent and high-quality parts throughout its lifecycle. Adhering to a structured routine helps catch problems early, allowing for timely repairs or replacement and ultimately protecting the significant investment a high-quality die represents.
- Regular Cleaning: Thoroughly clean dies with appropriate solvents to remove any oil, residue, or adhered material before and after use.
- Scheduled Inspections: Implement a fixed schedule for visual and dimensional inspections, for example, after a certain number of production cycles.
- Proper Lubrication: Ensure adequate lubrication during operation to minimize friction and prevent galling.
- Accurate Documentation: Maintain detailed records of all inspections, maintenance activities, and repairs. This history helps identify recurring issues and informs decisions on refurbishment or replacement.
- Correct Storage: Store dies in a clean, dry environment with a protective coating to prevent corrosion when not in use.
A Strategic Approach to Die Quality and Longevity
Ensuring the quality and performance of automotive dies is not a single action but a continuous, multi-layered process. It begins with foundational visual and manual checks to catch obvious flaws and progresses to high-precision metrology like CMM and 3D scanning to guarantee adherence to strict design tolerances. This combination ensures that a die is dimensionally perfect before it ever enters production.
Furthermore, the focus on material integrity through both non-destructive and, when necessary, destructive testing confirms that the die is structurally sound and capable of withstanding the extreme forces of stamping operations. Finally, a rigorous in-service assessment and maintenance program is the key to maximizing the tool's lifespan and ensuring consistent output. By integrating these diverse inspection techniques into a cohesive quality assurance strategy, manufacturers can prevent defects, minimize downtime, and produce high-quality automotive components with confidence.
Frequently Asked Questions
1. What are the 4 methods of inspection?
In a broad quality control context, inspection is often categorized into four main types based on the production stage: Pre-Production Inspection (checking raw materials), During Production Inspection (monitoring early-stage production), Pre-Shipment Inspection (final check of finished goods before they leave the factory), and Container Loading Supervision. However, when referring specifically to the technical inspection of an item like an automotive die, methods can be grouped into categories like Visual Inspection, Dimensional Inspection (Metrology), Material Testing (NDT/Destructive), and Functional Testing.
2. How many stages are there in visual inspection in NDT?
In the context of Non-Destructive Testing (NDT), particularly for processes like welding which share principles with die manufacturing and maintenance, visual inspection is typically conducted in three key stages. These are: before the process begins (e.g., checking materials and setup), during the process (monitoring for immediate issues), and after the process is complete (inspecting the final product for surface defects). This multi-stage approach ensures quality is maintained throughout the entire lifecycle.
