TL;DR

Magnesium die casting offers transformative benefits for electric vehicles (EVs) by enabling significant lightweighting, which directly enhances energy efficiency and extends driving range. Beyond weight reduction, it provides a superior strength-to-weight ratio for robust structural parts, excellent thermal management for cooling batteries and electronics, and effective electromagnetic interference (EMI) shielding. These combined advantages make it a critical technology for developing higher-performing and more reliable EVs.

The Primary Advantage: Lightweighting and Its Impact on EV Efficiency

The single most critical benefit of magnesium die casting for electric vehicles is lightweighting. In the context of EVs, lightweighting is the strategic reduction of a vehicle's overall mass to decrease its energy consumption. Because magnesium is one of the lightest structural metals available—roughly two-thirds the density of aluminum and one-quarter that of steel—its use can drastically lower a vehicle's curb weight. This fundamental advantage directly translates into improved energy efficiency and, most importantly, extended driving range on a single charge, a key factor for consumer adoption.

The physics are straightforward: a lighter vehicle requires less energy to accelerate and maintain speed, reducing the strain on the battery pack. This efficiency gain is not merely linear. The adoption of lighter magnesium components can lead to a phenomenon known as "compounded mass savings." For example, a lighter body frame and chassis made from magnesium alloys allow for the use of a smaller, lighter battery pack, less powerful motors, and smaller braking systems to achieve the same performance targets. This creates a virtuous cycle of mass reduction that amplifies the initial weight savings, a concept critical for optimizing EV design.

Automotive designers leverage these properties to meet increasingly stringent performance and range goals. The benefits are realized across numerous components where weight is a critical factor. Key applications that benefit from magnesium die casting's lightweight properties include:

• Structural Components: Body-in-white structures, subframes, and shock towers can be made lighter without sacrificing rigidity.
• Closure Panels: Hoods, doors, and liftgates are prime candidates for weight reduction, improving not only efficiency but also ease of use.
• Powertrain and Chassis Parts: Components like transmission cases, motor housings, and suspension parts contribute significantly to overall vehicle mass.
• Interior Components: Seat frames, steering wheel armatures, and instrument panel support beams can also be manufactured from lightweight magnesium alloys.

Structural Integrity: Achieving High Strength and Durability

While lightweighting is the primary driver, it would be impractical without ensuring structural integrity and safety. Magnesium die castings provide an exceptional strength-to-weight ratio, meaning they offer high rigidity and durability relative to their low mass. This characteristic allows engineers to replace heavier steel and even some aluminum components in critical structural roles without compromising vehicle performance or occupant safety. Modern magnesium alloys are engineered to withstand significant stress and load, enduring the vibrations, impacts, and mechanical forces inherent in vehicle operation.

A prime example is its use in car seat structures. Seats must meet stringent safety standards for crash performance, and using magnesium allows for the design of strong yet lightweight frames. This not only contributes to overall mass reduction but also helps shift the vehicle's center of gravity rearward, which can improve handling and stability. Similarly, front-end carrier components and instrument panel beams made from magnesium die castings enhance structural performance while shedding critical kilograms from the vehicle's front, further optimizing weight distribution.

Another significant advantage is the potential for part consolidation. The excellent castability of magnesium alloys allows for the creation of large, complex, single-piece components that can replace an assembly of multiple stamped and welded steel parts. As detailed in a review on ScienceDirect, this approach not only reduces weight but also simplifies the supply chain, streamlines the assembly process, and can lower manufacturing costs by reducing the number of joints and fasteners, which are potential points of failure.

Advanced Properties: Thermal Management and Electromagnetic Shielding

Beyond its mechanical and lightweight advantages, magnesium offers advanced properties that are uniquely suited to the challenges of electric vehicles. Two of the most important are efficient heat dissipation and inherent electromagnetic interference (EMI) shielding. EV powertrains—particularly batteries, inverters, and high-output motors—generate substantial heat during operation. Effective thermal management is crucial for maintaining performance, ensuring longevity, and preventing thermal runaway in battery packs.

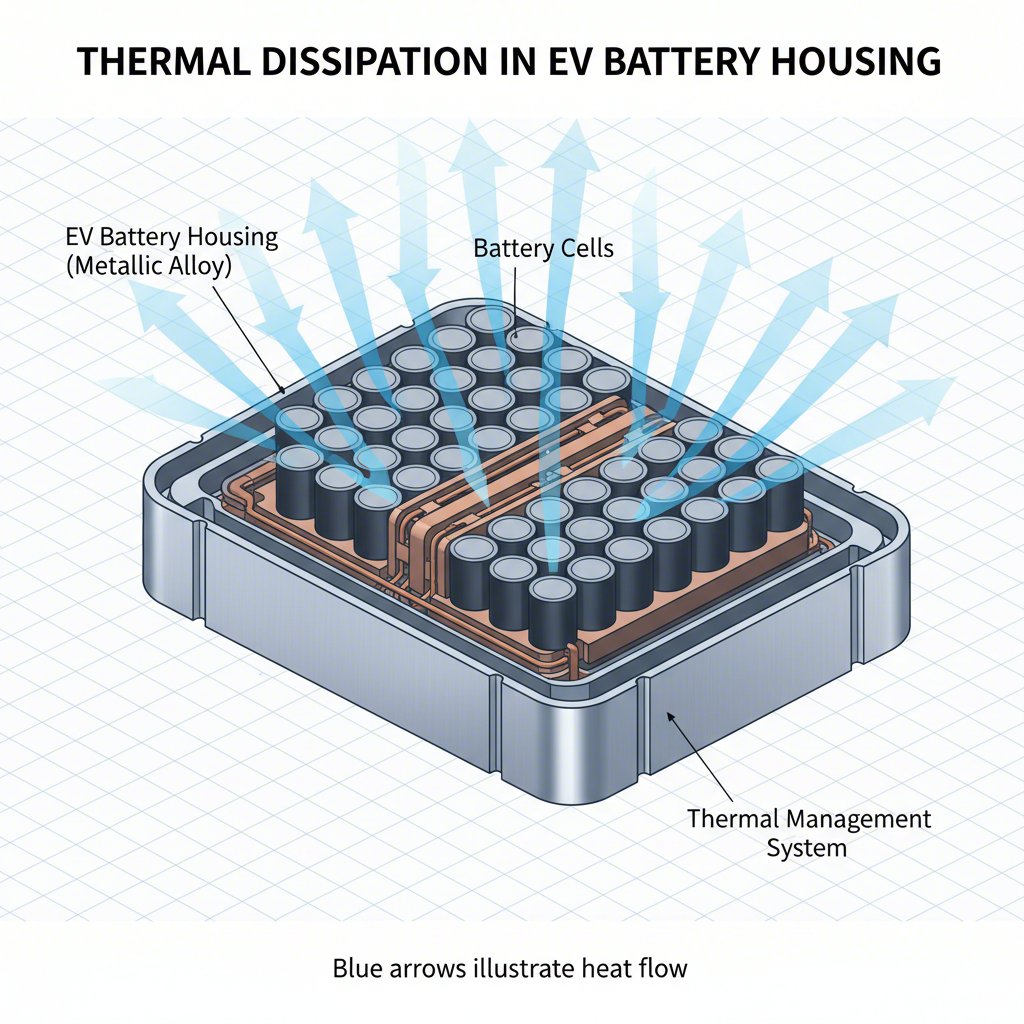

Magnesium alloys possess good thermal conductivity, allowing them to act as effective heat sinks. This makes them an ideal material for enclosures and housings for sensitive electronics and batteries. A well-designed magnesium battery housing not only provides structural protection but also helps dissipate heat away from the cells, contributing to a more stable operating temperature. According to industry analysis from Argus Media, the market for magnesium in battery housings is a significant growth area for this reason. This thermal performance is superior to many plastics and offers significant weight savings over aluminum or steel alternatives.

Furthermore, the high-power electrical systems in EVs generate significant EMI, which can disrupt the function of sensitive control systems, infotainment, and navigation. Magnesium naturally provides excellent EMI shielding. By using magnesium die castings for housings of electronic components, engineers can protect these systems without needing to add extra, heavy shielding materials. This dual-purpose functionality—providing structure, thermal management, and EMI shielding in a single, lightweight component—makes magnesium an incredibly efficient material choice for modern EV design.

Overcoming Challenges: Modern Alloys and Manufacturing Viability

Magnesium die casting is a manufacturing process where molten magnesium is injected into a steel mold (or die) under high pressure to form complex parts with high precision. While the benefits are clear, the material has historically faced challenges, primarily related to corrosion and performance at high temperatures. However, significant advancements in metallurgy and manufacturing processes have largely overcome these limitations, making magnesium a viable and reliable choice for widespread automotive use.

Historically, magnesium's reactivity made it susceptible to corrosion. Today, specialized high-purity alloys have been developed with significantly improved corrosion resistance. As noted by industry experts at diecasing-xy.com, modern magnesium alloys, often combined with advanced surface treatments and coatings, provide durable performance even in harsh underbody or engine-bay environments. This ensures the long-term reliability required for automotive components.

Another past limitation was the reduced strength of magnesium alloys at elevated temperatures. This restricted their use in components near engines or other heat sources. Addressing this, companies like Sumitomo Electric have developed innovative, rare-earth-free alloys with vastly improved heat resistance. These new materials expand the application range of magnesium to powertrain components that were previously off-limits, further contributing to vehicle lightweighting. The table below summarizes how modern engineering has addressed these historical challenges:

The successful implementation of these advanced materials relies on expert manufacturing. Leading suppliers in the automotive sector, such as Shaoyi (Ningbo) Metal Technology Co., Ltd., specialize in producing high-precision metal components and stamping dies for OEMs. With expertise in advanced simulations and a commitment to quality standards like IATF 16949, they provide the manufacturing capabilities necessary to turn these advanced magnesium alloys into reliable, high-performance EV parts. Their work in rapid prototyping and mass production is essential for integrating these benefits into the next generation of electric vehicles.

Frequently Asked Questions

1. Is magnesium used in electric cars?

Yes, magnesium is increasingly used in electric cars. Its primary benefit is its light weight, which reduces the vehicle's energy consumption and helps extend its driving range. It is also used for its strength, durability, and ability to shield electronic components from electromagnetic interference, a crucial feature in EVs.

2. What is the use of magnesium in the automotive industry?

In the automotive industry, magnesium is primarily used for lightweighting. It is die-cast into various components such as instrument panel support beams, steering wheel frames, seat structures, and front-end carriers. Using magnesium in the front of a vehicle not only reduces total mass but can also improve weight distribution, leading to better handling and turning capabilities.

3. Why is magnesium used in car seats?

Magnesium is used for car seat structures because of its high strength-to-weight ratio. It allows for the creation of strong, safe seat frames that are significantly lighter than their steel counterparts. This weight reduction contributes to overall vehicle efficiency and can help improve the vehicle's center of gravity for better handling.

4. What is magnesium die casting?

Magnesium die casting is a manufacturing process where molten magnesium alloy is injected into a hardened steel mold, known as a die, under high pressure. The metal quickly cools and solidifies, taking the shape of the mold's cavity. This process is highly efficient for mass-producing complex, precise, and lightweight metal parts for various industries, including automotive.
